Atlantic Coast Line, FL

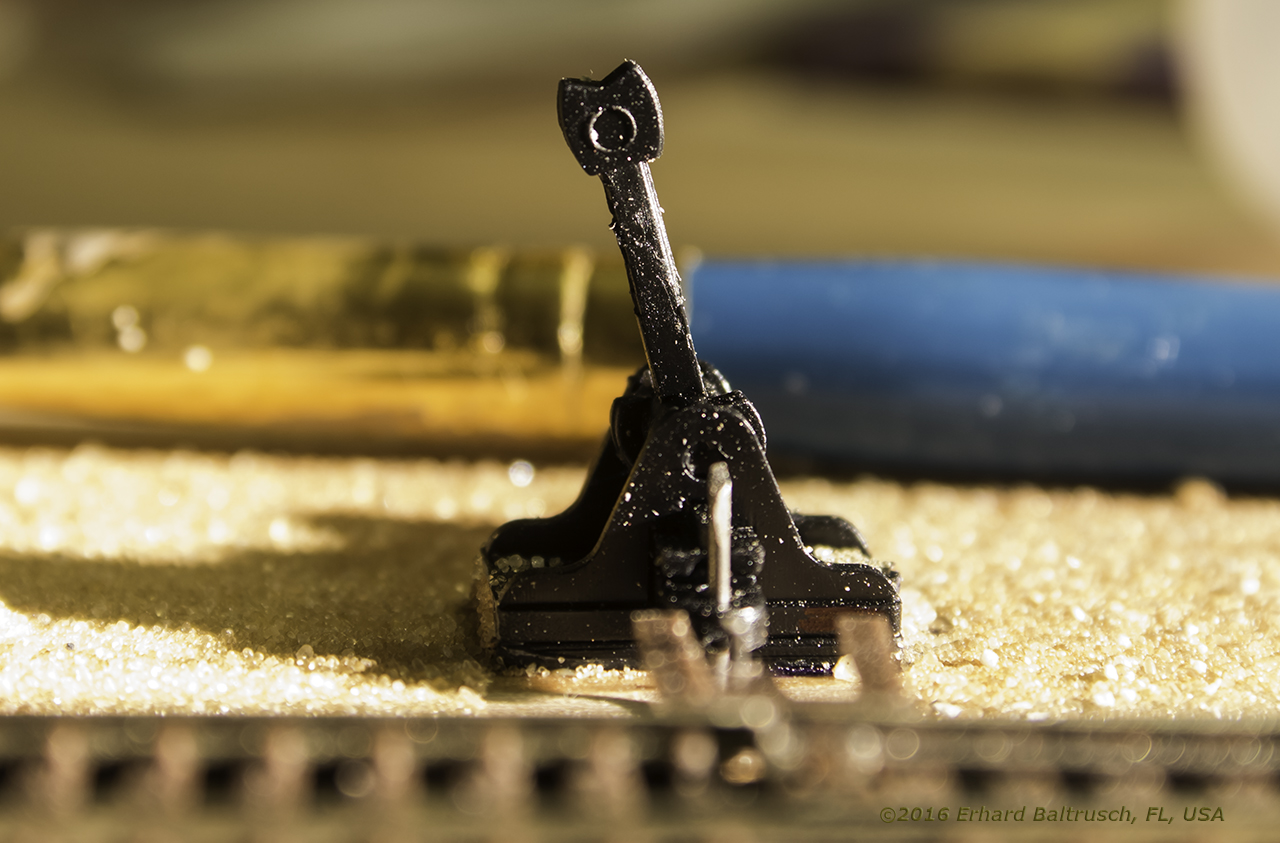

This N-Scale layout started as a 3 ft x 9 ft design and was eventually extended with an 11ft x 10 inch shelf and a 3ft by 6ft module. It is unique in that the customer wanted it to look like another piece of furniture. The layout is DCC controlled using an NCE PowerPro system with two additional handhelds. About 6 trains can be run simultaneously on this pike. All turnouts are operated manually using manual switch stands.
01-27-2016

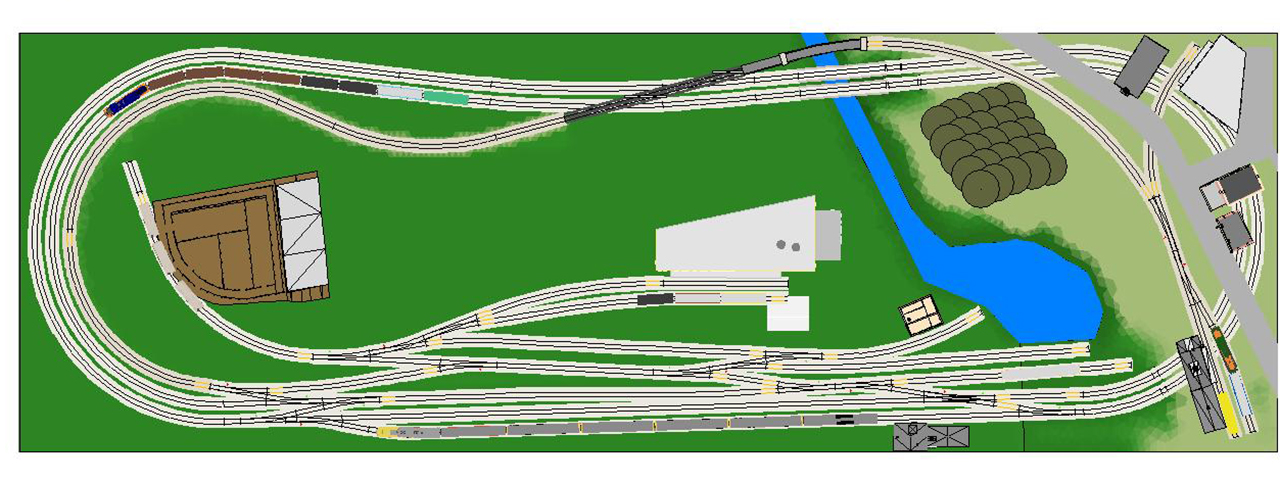

The requirements for this plan were to have an orange grove, a stock yard, and a packing company.
The plan should also allow for at least 2 trains to run simultanously, with a switcher under
manual control.
03-27-2016

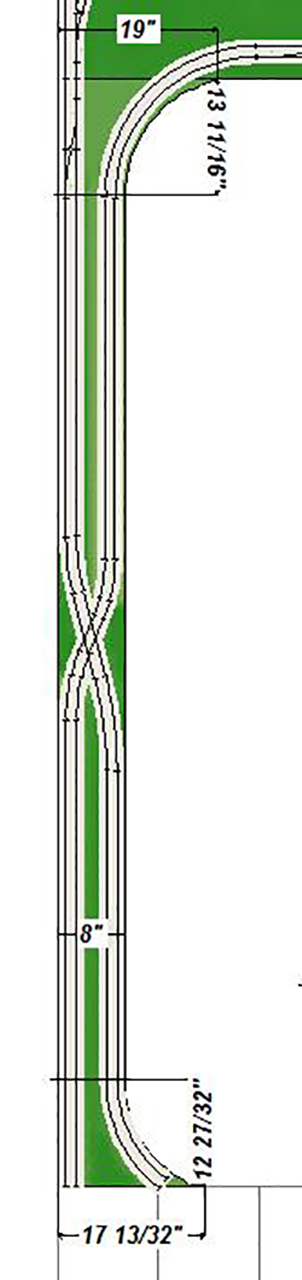

With the build already under way and almost finished, the customer called and wanted a
shelf-like extension of 11 ft in length, plus a 3' x 6' extension.
09-10-2016

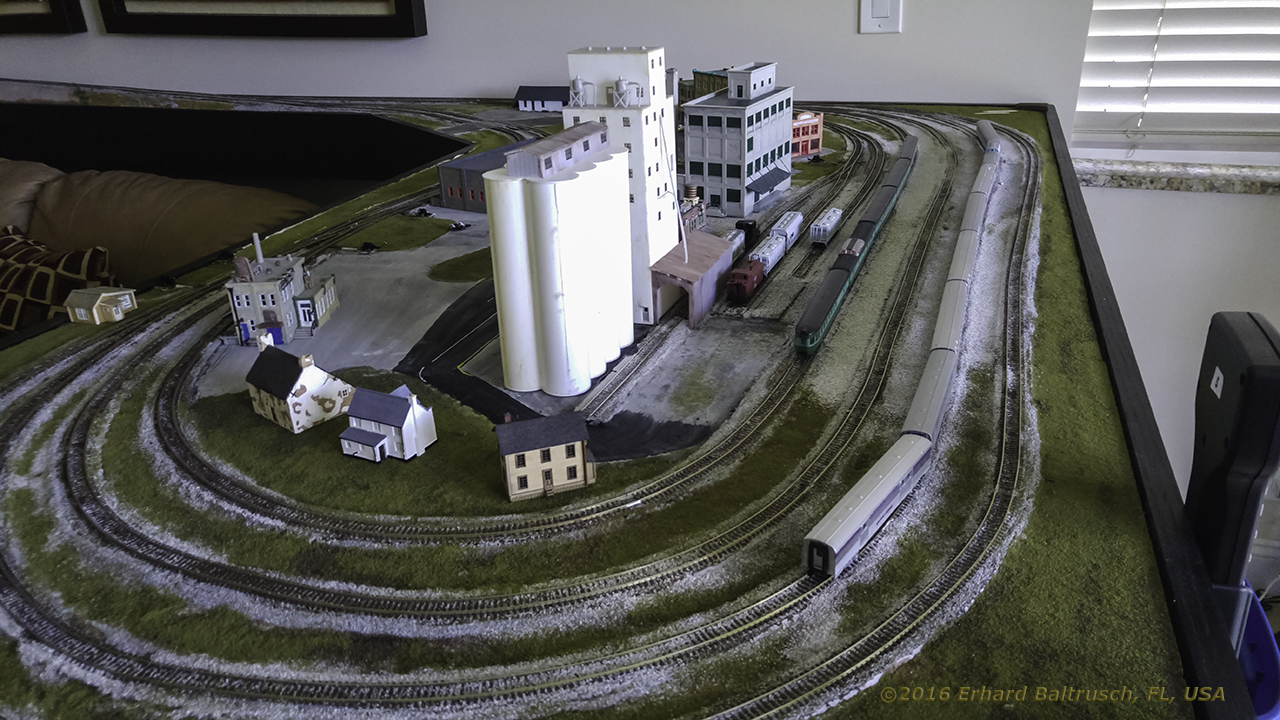

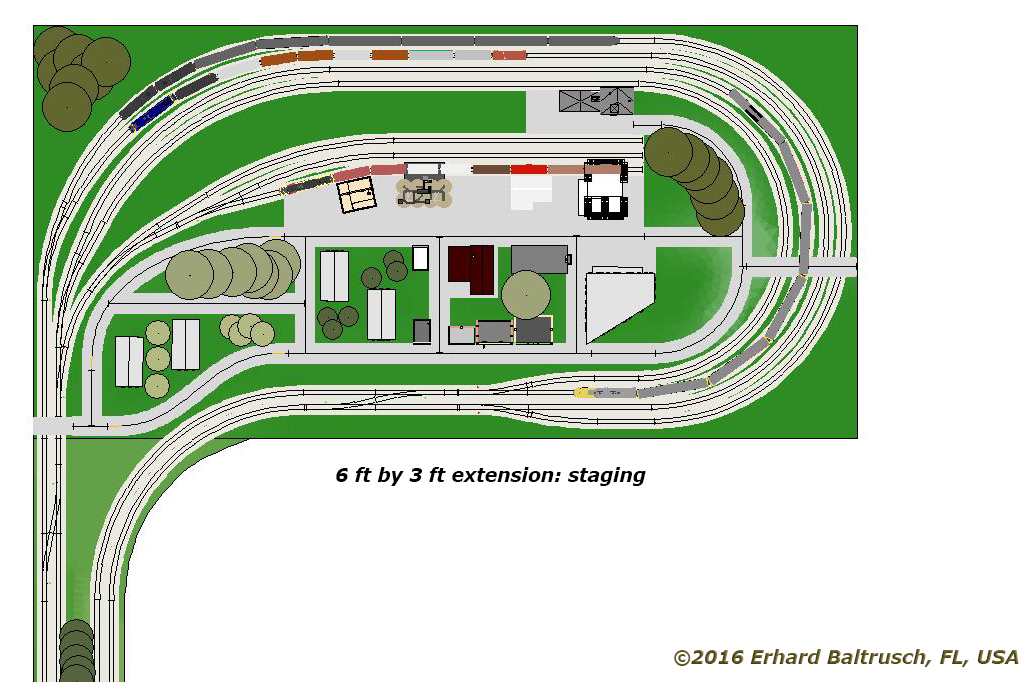

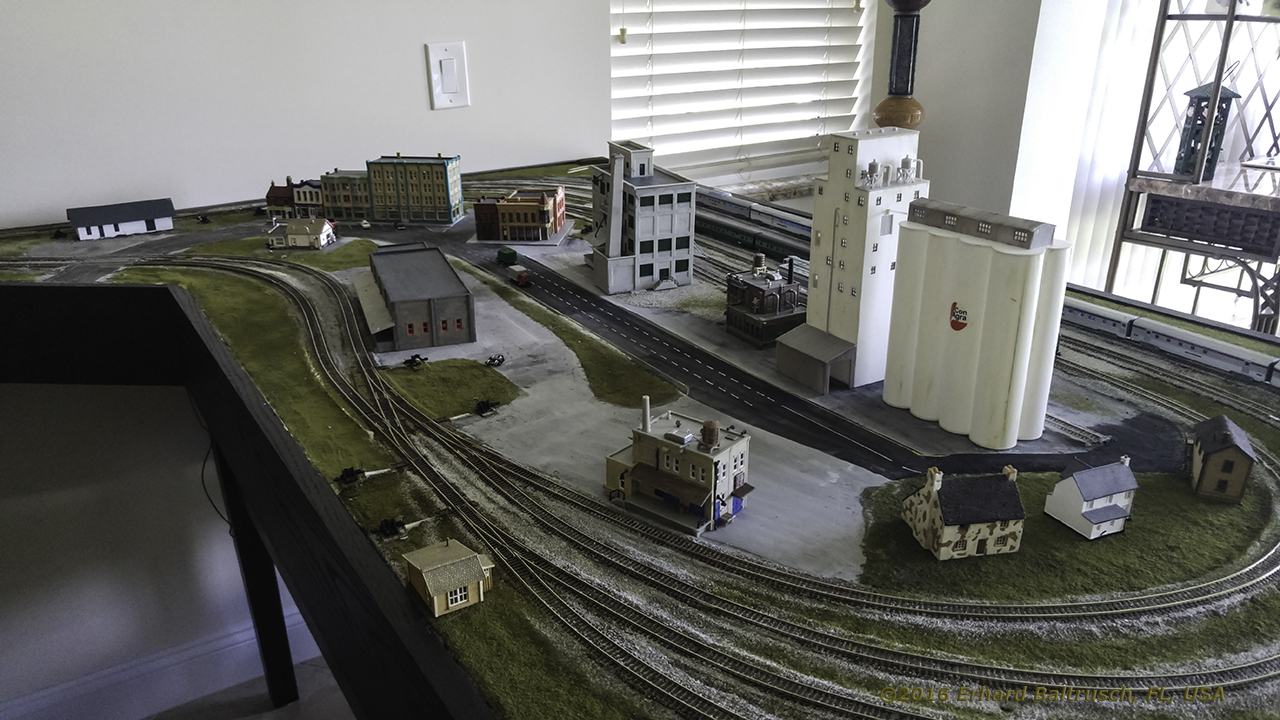

This is the plan for the 3' by 6' extension which the customer intended to us as
staging area.

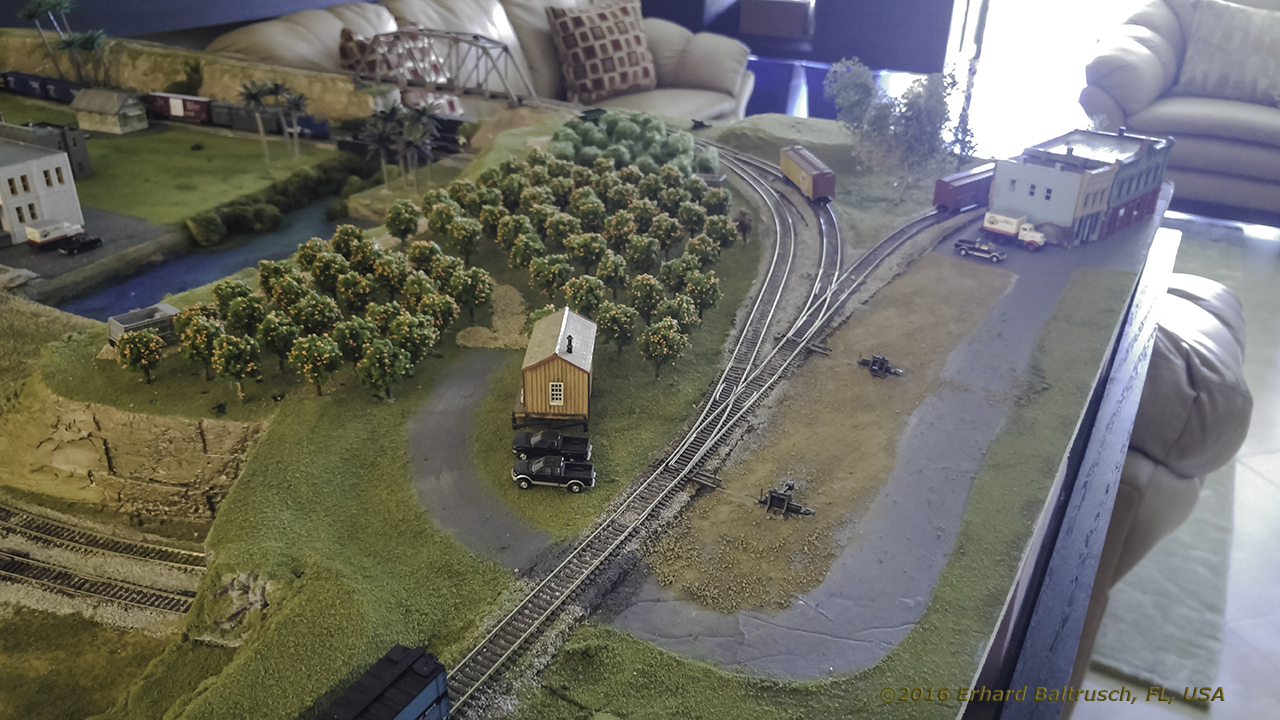

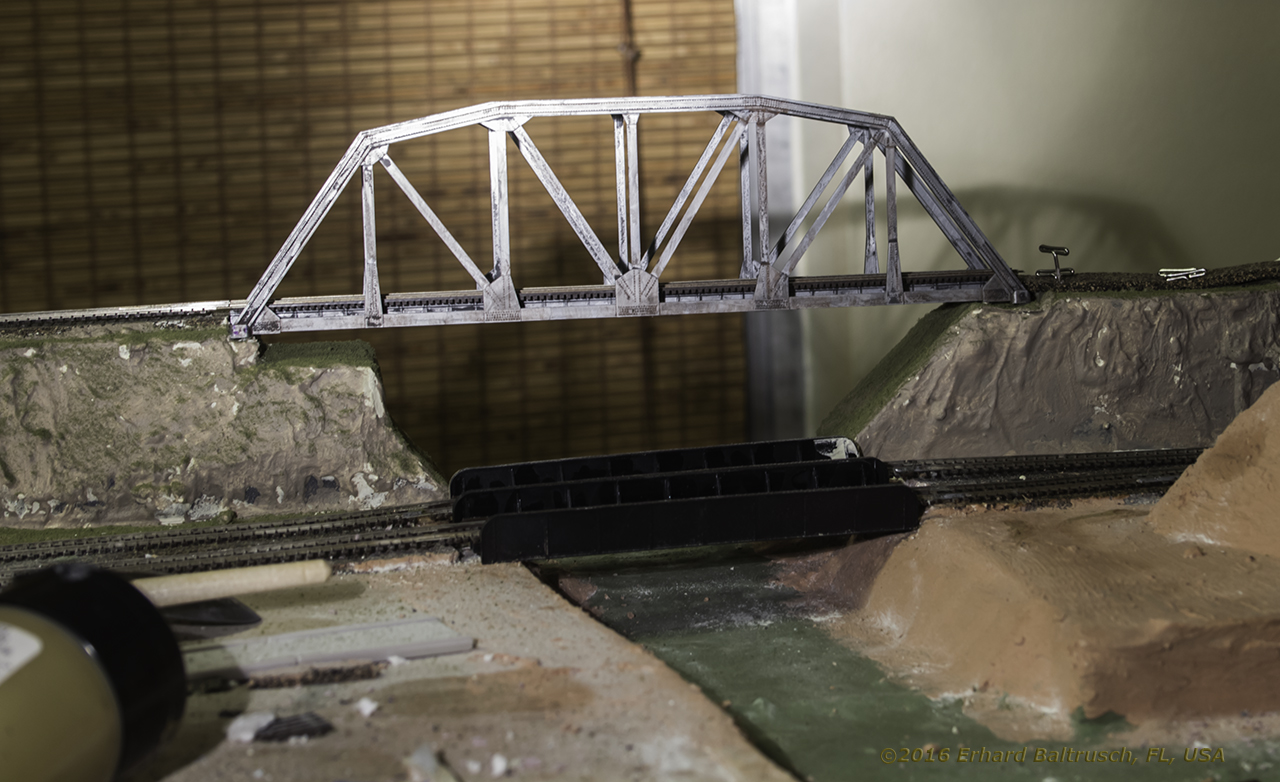

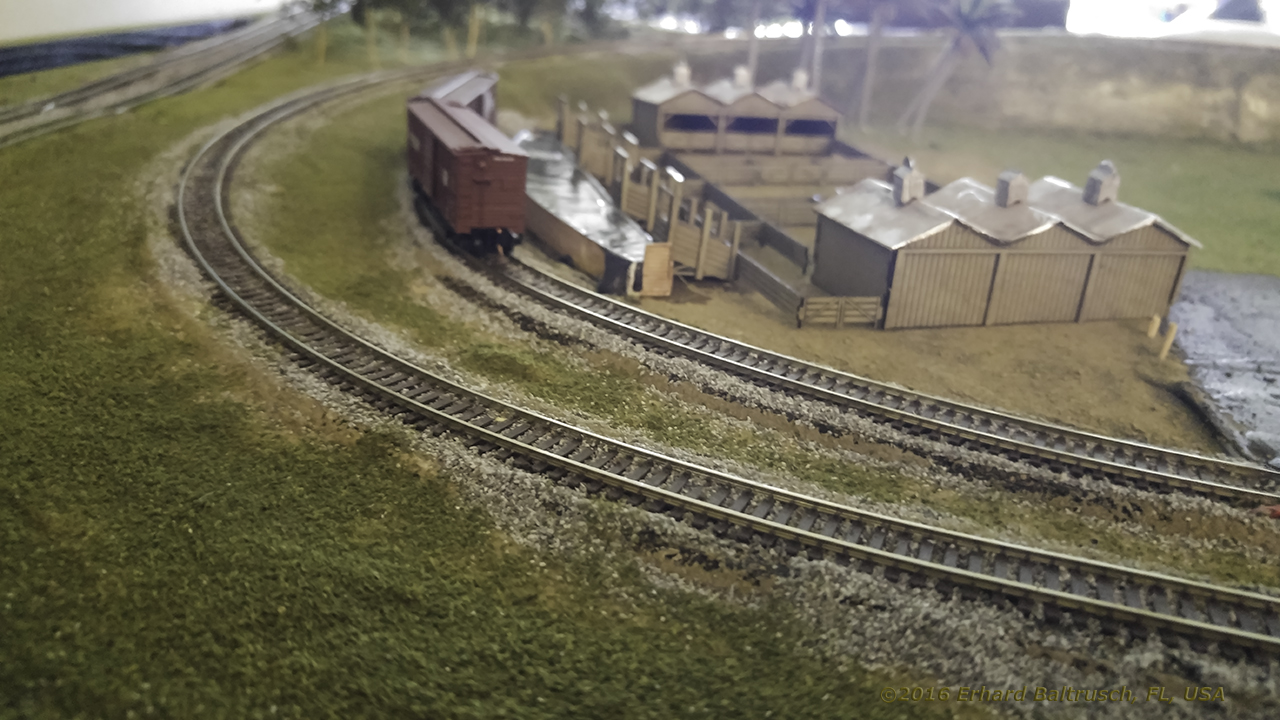

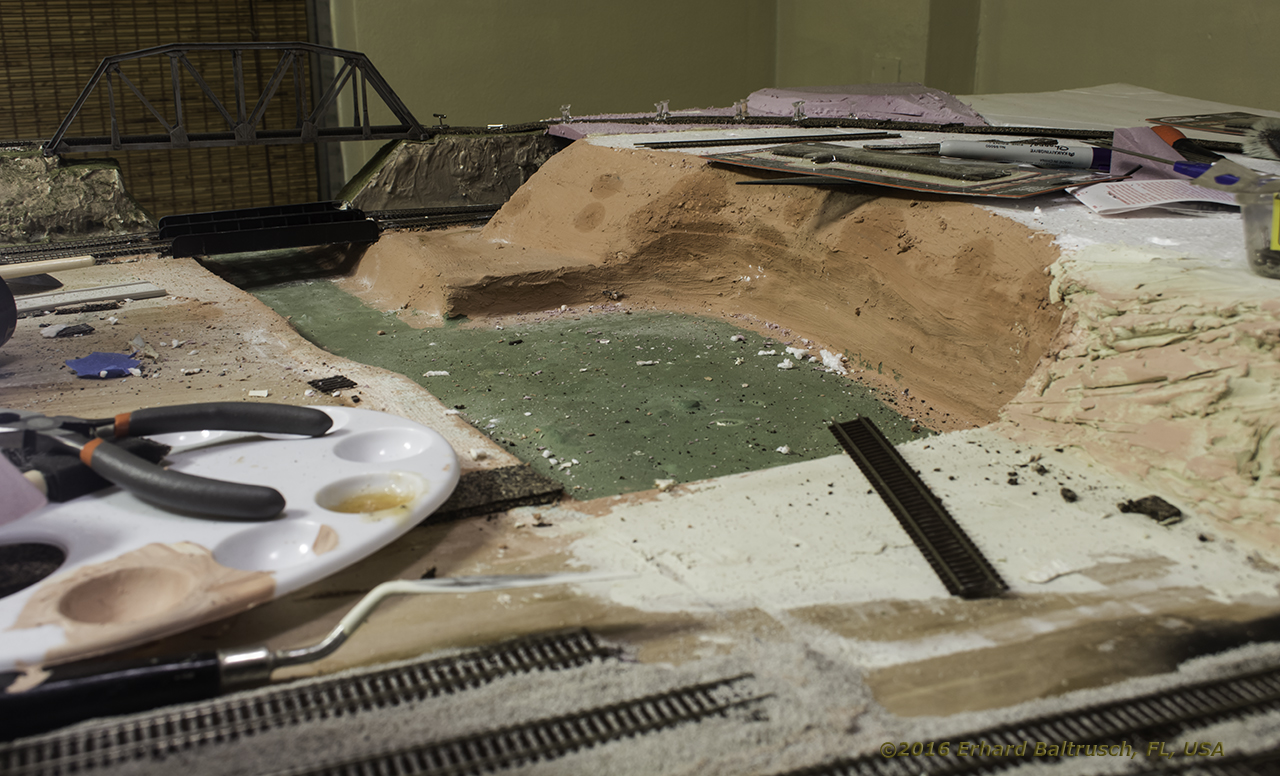

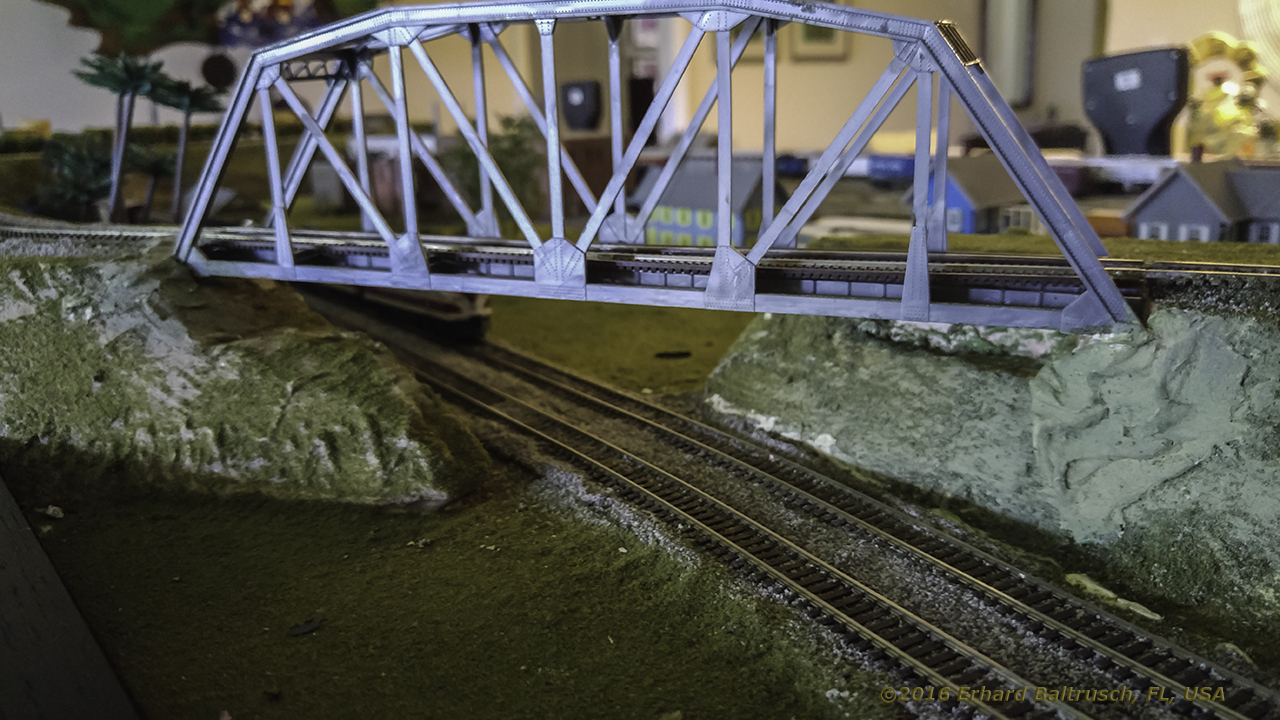

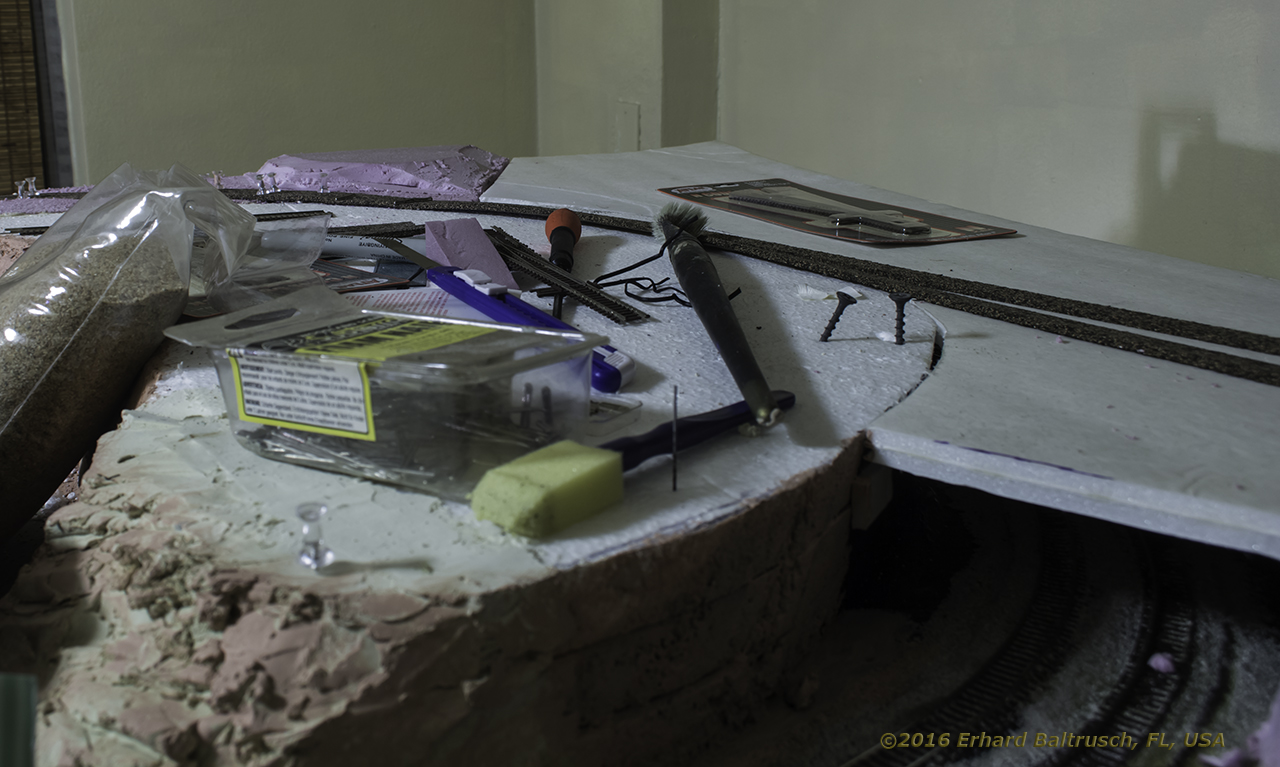

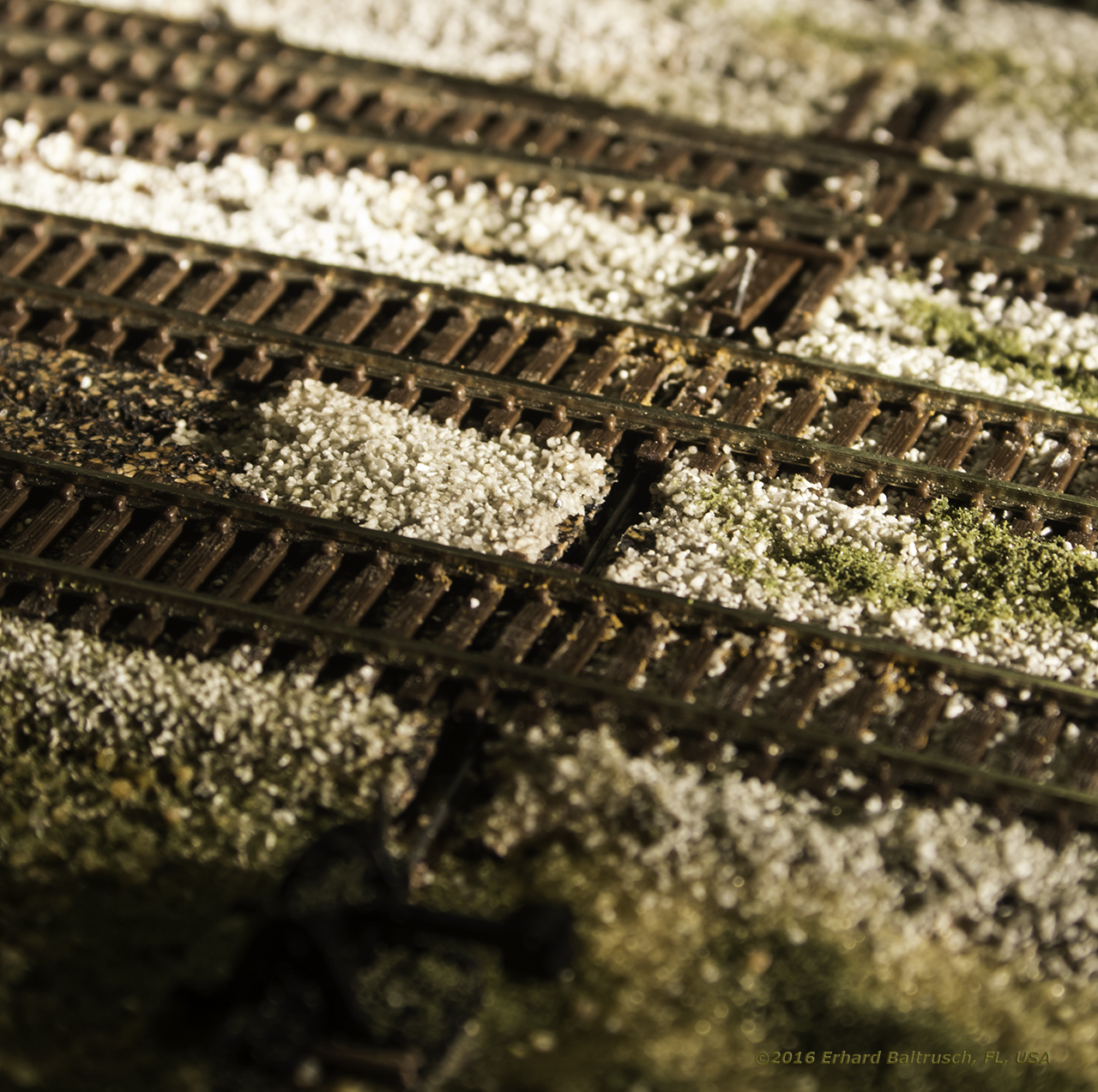

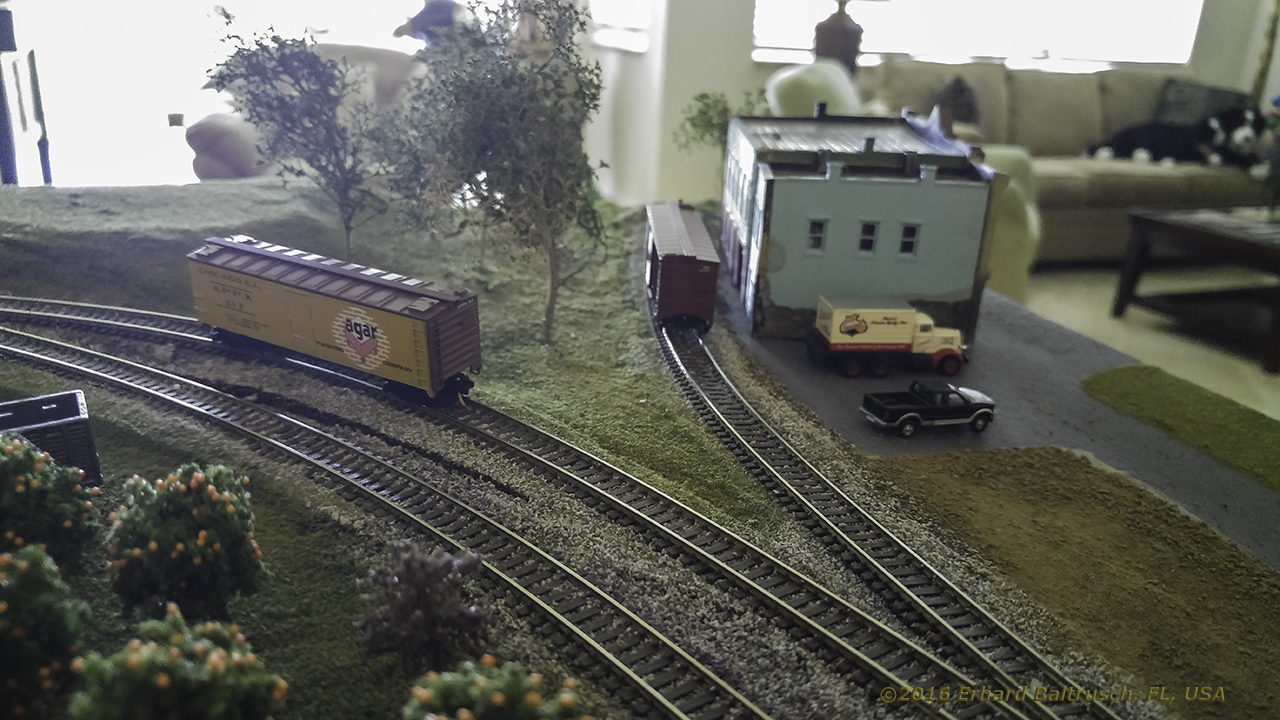

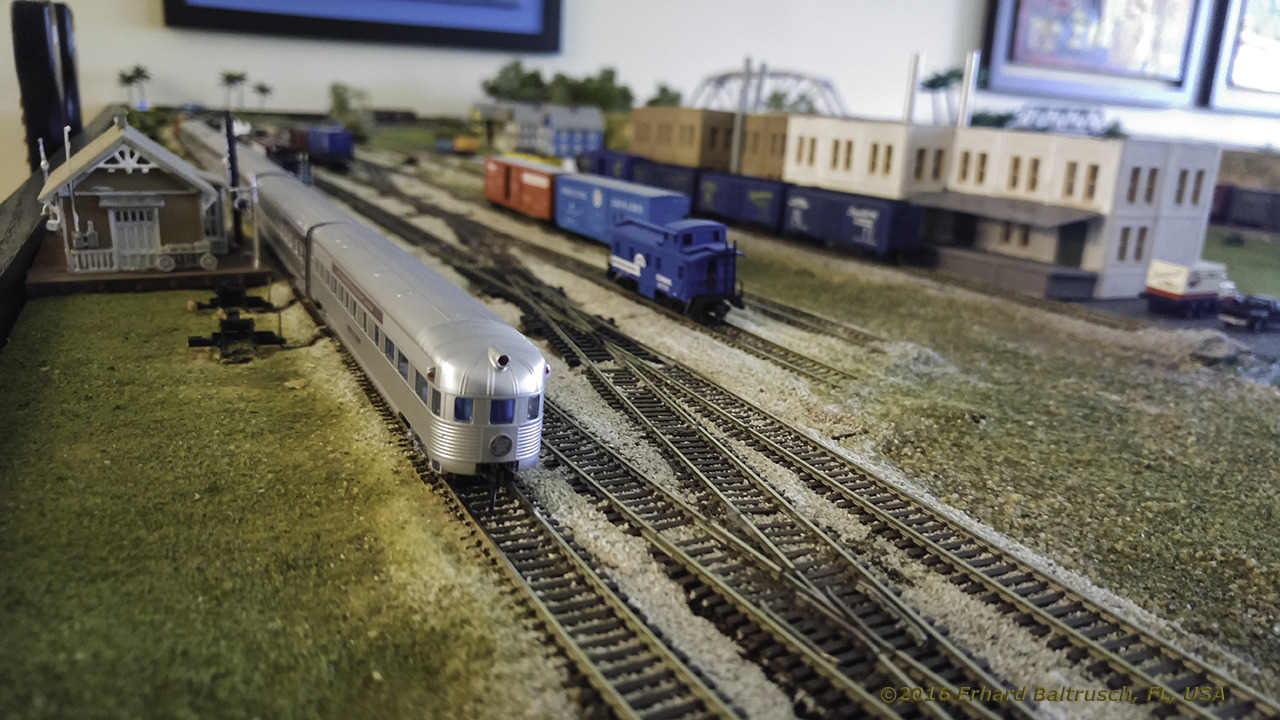

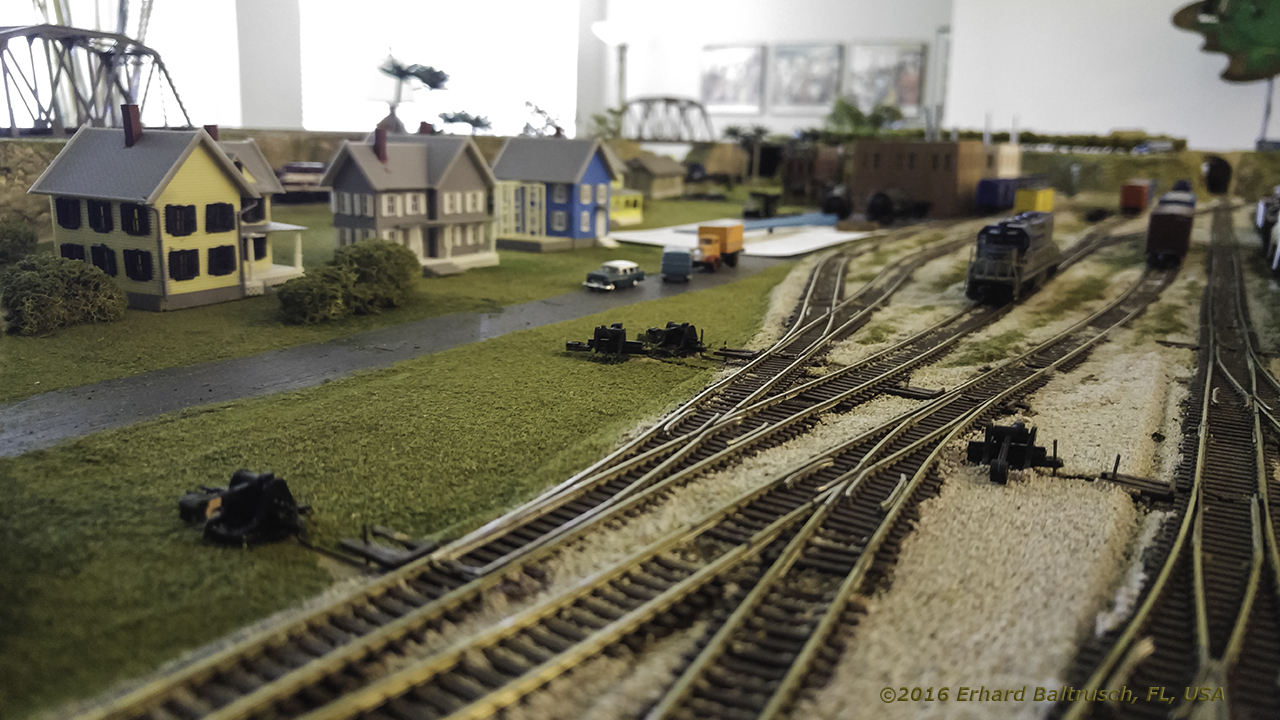

The following pictures are from the original 9' x 3' layout.

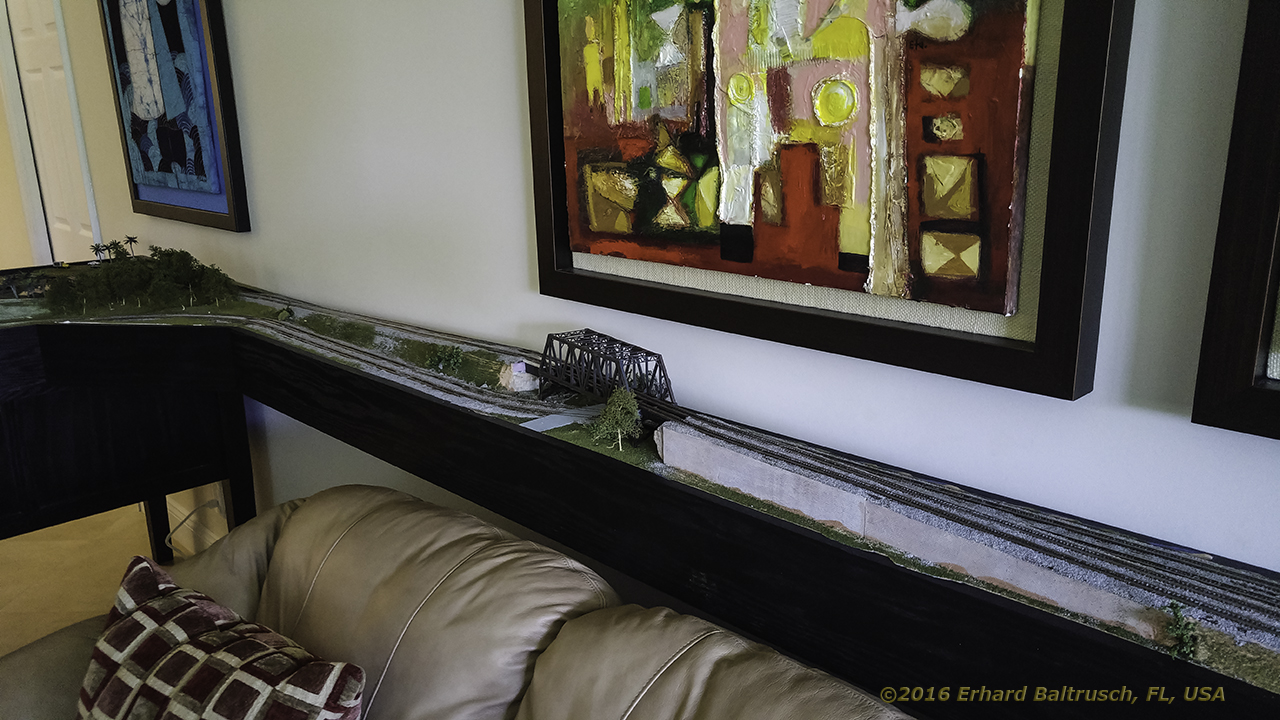

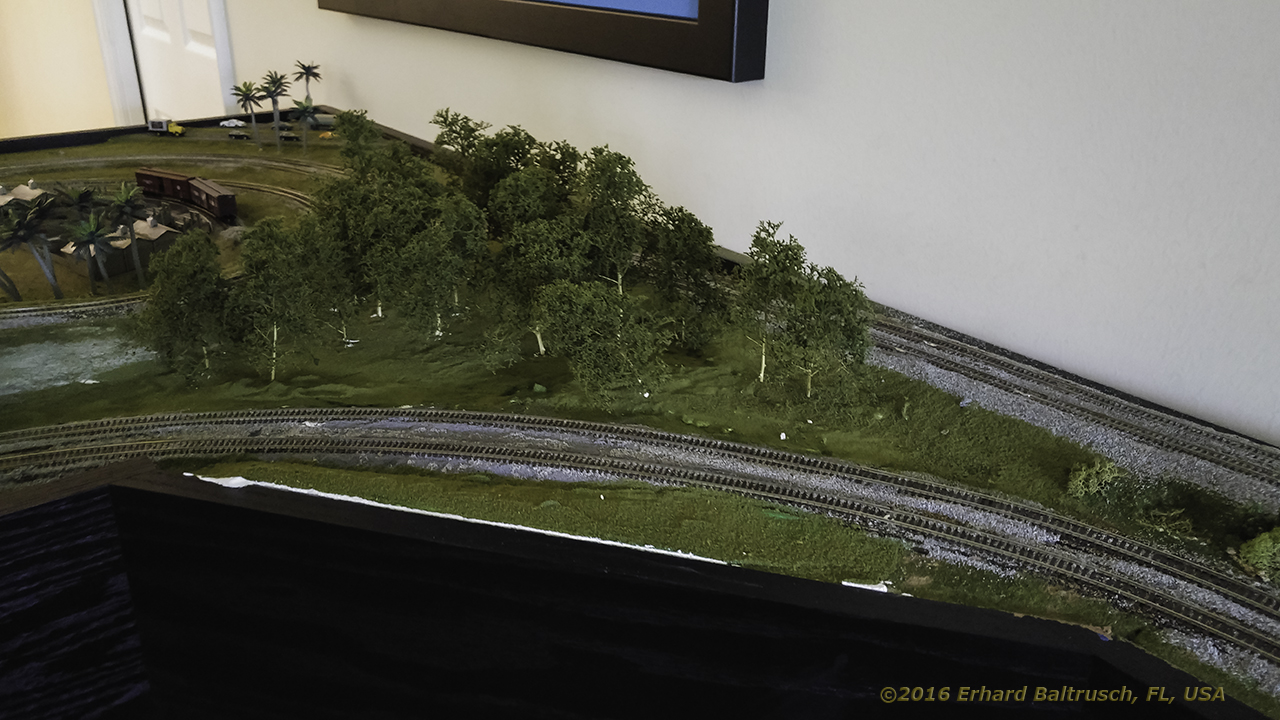

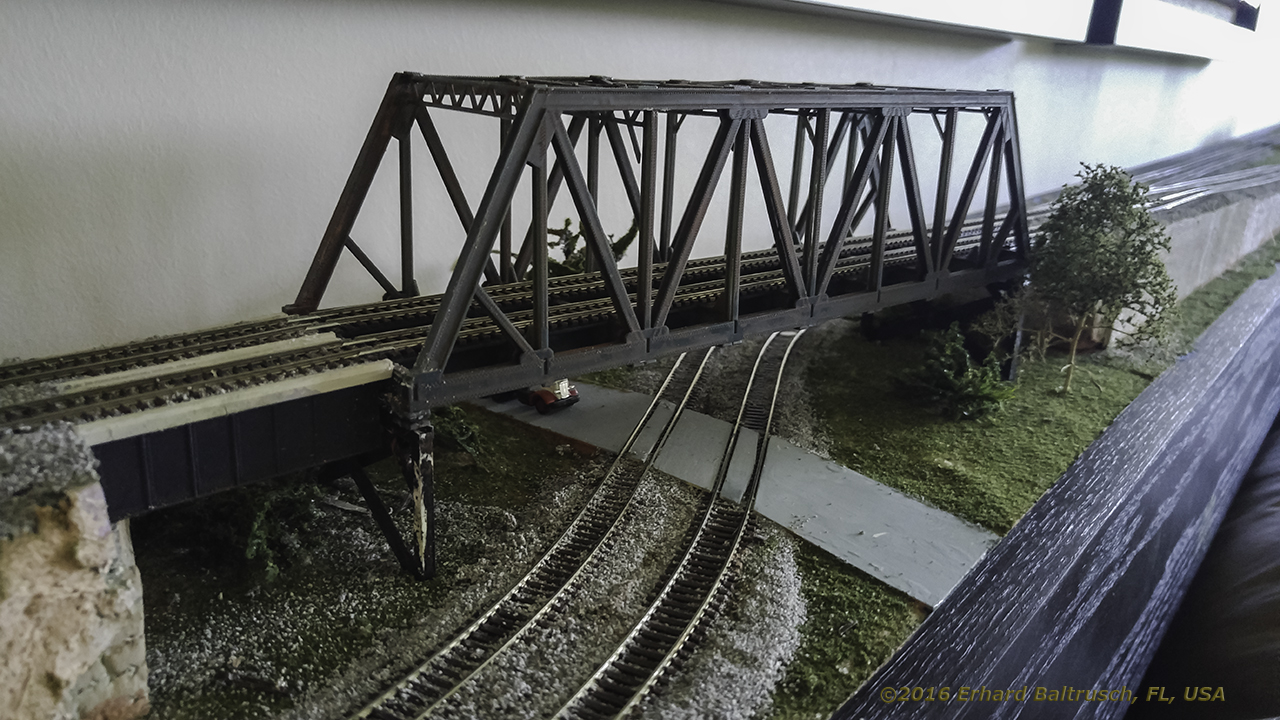

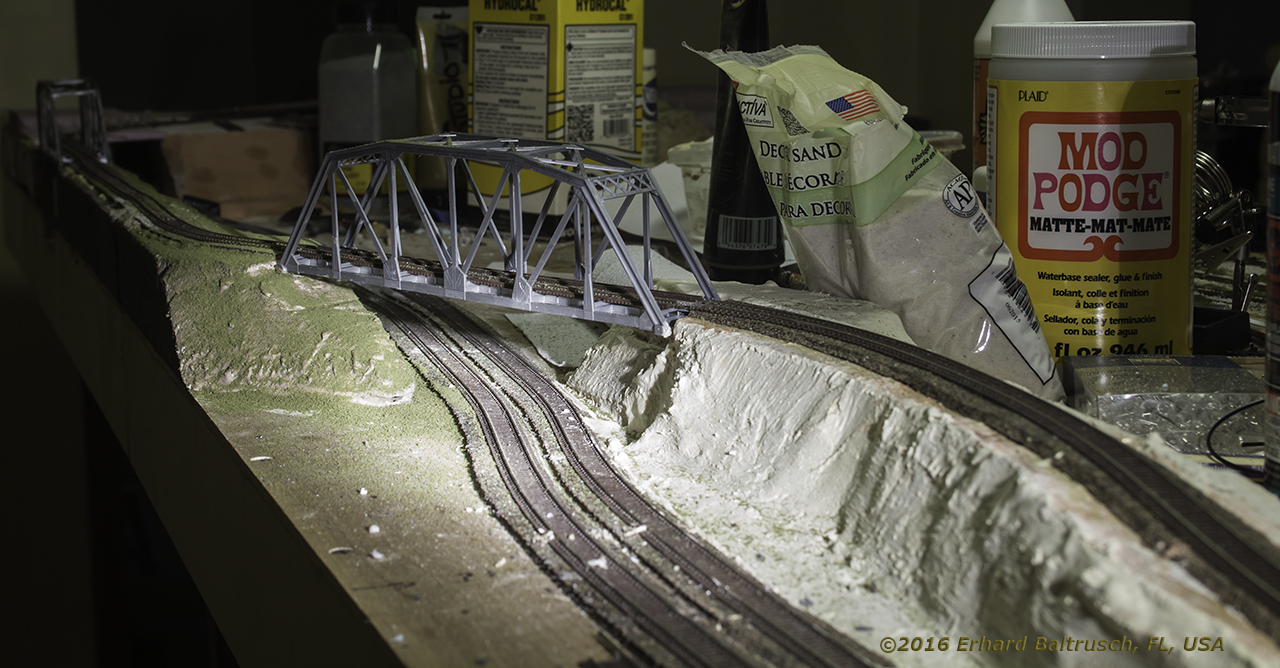

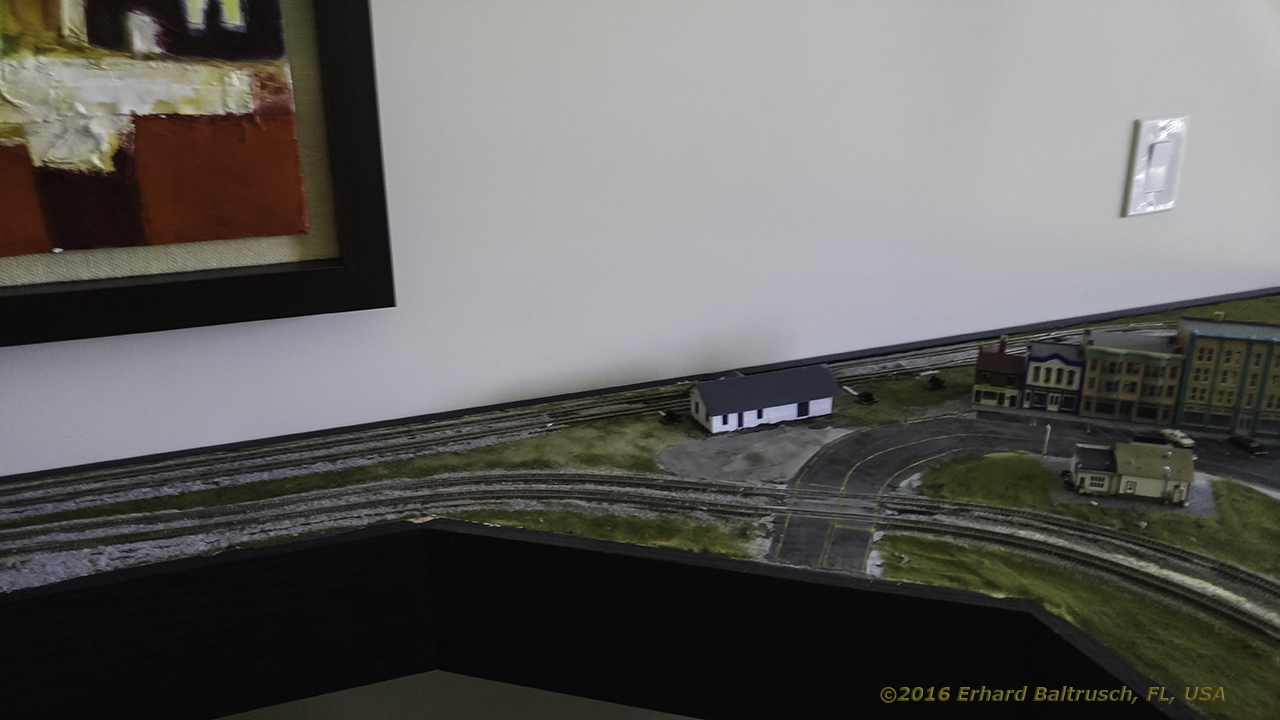

And these pics are from the 11' by 10" eextension between the two other modules:
